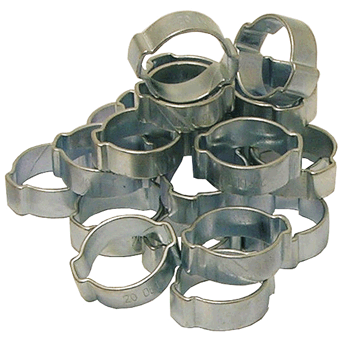

Two-ear clips W1
The two-ear clip W1 (zinc-plated) is a economic solution for many simple hose assemblies, used with air or fluids. The two ears maintain a constant pressure around the hose. The practical design means that they clamp firmly on the assembly and are tamper proof once mounted. Two-ear clips offer a great versatility in simple hose assemblies.
Also available: Ear clip pliers for lateral and frontal use.
Order reference: KOT
Applications
simple hose assemblies
|
Ø min - max (mm) |
Bandwith (mm) |
Box qty (pc) |
Ref W1 |
| 10 - 12 | 6,5 | 1.000 | KO1012 |
| 11 - 13 | 6,5 | 500 | KO1113 |
| 13 - 15 | 7,0 | 500 | KO1315 |
| 14 - 17 | 7,0 | 500 | KO1417 |
| 15 - 18 | 7,5 | 500 | KO1518 |
| 17 - 20 | 7,5 | 250 | KO1720 |
| 18 - 21 | 8,0 | 250 | KO1821 |
| 20 - 23 | 8,0 | 250 | KO2023 |
| 22 - 25 | 8,5 | 200 | KO2225 |
| 23 - 27 | 8,5 | 200 | KO2327 |
| 25 - 28 | 9,0 | 200 | KO2528 |
| 28 - 31 | 9,0 | 100 | KO2831 |
| 31 - 34 | 9,5 | 100 | KO3134 |
| 34 - 37 | 9,5 | 100 | KO3437 |
| 37 - 40 | 10,0 | 100 | KO3740 |
| 40 - 43 | 10,0 | 75 | KO4043 |
| 43 - 46 | 10,5 | 75 | KO4346 |
