Corrugated SS hoses


  • mechanical or hydraulic formed single layered hoses

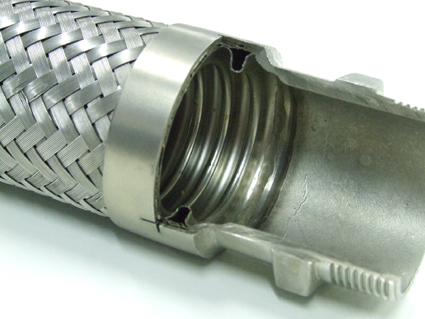

  • narrow corrugated stainless steel hose with or without pressure bearing stainless steel braid.


  • transfer of oil, thermic oil, steam, hydrocarbons, (liquified) gasses, water, chemicals, ...
  • also suitable as vibration absorber for engines, compressors, loading hoses, compensators, solar panels, ...
  • temperature range from -269°C up to 800°C (depending on SS type)
  • speciale versions for chlorine and ammonia applications


  • standard AISI 316 hose and AISI 304 braid
  • AISI 321, MONEL or HASTELLOY possible
  • double layered hoses
  • double and triple braid (high pressure)
  • oxygen nozzles
  • nitrogen hoses (degreasing)
  • gas approved hoses (DN13 and DN50)
  • spirally corrugated hoses

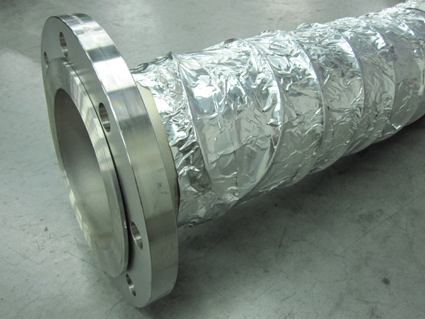

  • heated (double layered) hoses
  • food grade hoses


  • glass fibre braid
  • stainless steel protection spiral
  • glass fibre/silicone braid

normal usual threaded fittings and flanges (ss and cs), as well as DIN, SMS, RTS, camlock, guillemin, TW fittings
